Partially install the B-pillar trim panels at the top left and right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the top B-pillar trim panel partially

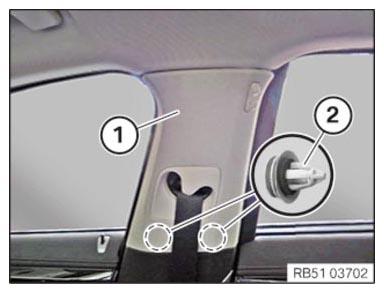

- Guide in the B-pillar trim panel (1) at the top on the headliner and clip into the clips (2).
- Check the front and rear of the B-pillar trim panel (1) for the correct fit at the edge protection.
