Lowering rear axle differential

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to rear axle differential.
If the rear axle differential drops down, persons can be injured or the rear axle differential can be damaged.

Secure the rear axle differential using a luggage strap.

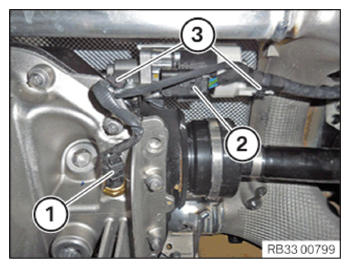

Unlock and disconnect the plug connections (1) and (2).
Detach cable from the holders (3).

Courtesy of BMW OF NORTH AMERICA, INC.

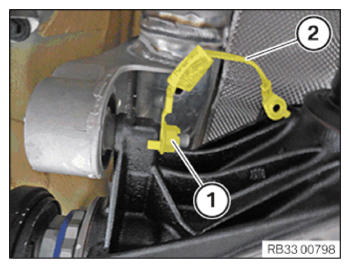

Unfasten nut (1).
Remove the ground strap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparing the special tool

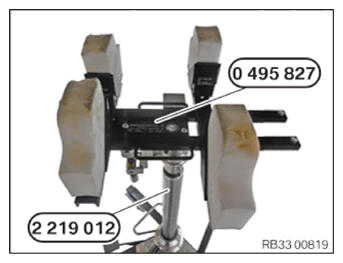

Place the special tool 0 495 827 (23 4 150) onto the universal jack 2 219 012 .

Courtesy of BMW OF NORTH AMERICA, INC.

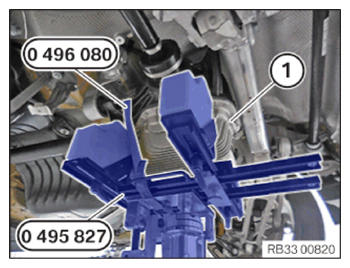

Support the rear axle differential (1) with the special tool 0 495 827 (23 4 150) .
Secure rear axle differential (1) with the special tool 0 496 080 (33 5 206) on the special tool 0 495 827 (23 4 150) .

Courtesy of BMW OF NORTH AMERICA, INC.

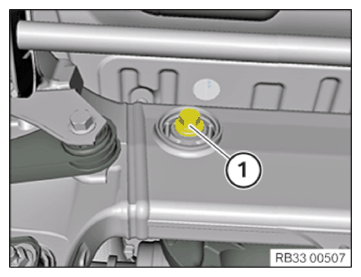

Loosen nut (1) on the rear axle support at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

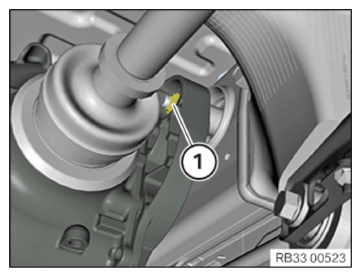

Pull the bolt (1) out of the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

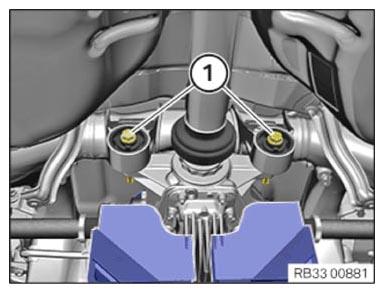

Loosen screws (1) rear axle support at front.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1) central mount.

Courtesy of BMW OF NORTH AMERICA, INC.

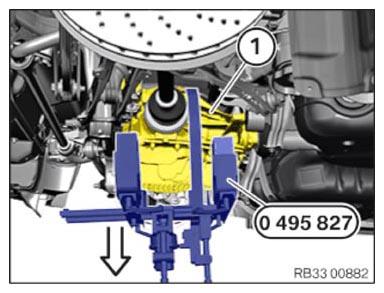

Slightly lower the rear axle differential (1) with the special tool 0 495 827 (23 4 150) .

Courtesy of BMW OF NORTH AMERICA, INC.
