Installing the seat cover for the front seat (partially removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

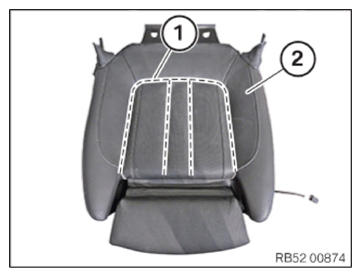

- Place the seat cover (2) on the cushion.
- Secure all loose trim wires (1) with clamps.
- Replace the clamps (2).
Parts: Clamps
- Insert the clamp (2) with the special tool 0 492 668 (52 0 050) .
- Clasp the trim wire (3) of the facing (1) and the trim wire (4) of the cover with the clamp (2) and bend the clamp (2).
| 1 | Upholstery |
| 2 | Clamp |
| 3 | Trim wire in cushion |
| 4 | Trim wire in seat cover |
| 5 | Seat cover |
