Installing the left and right bearing journal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Do not mix up the left and right.

NOTE: Perform the steps on the right and left side.

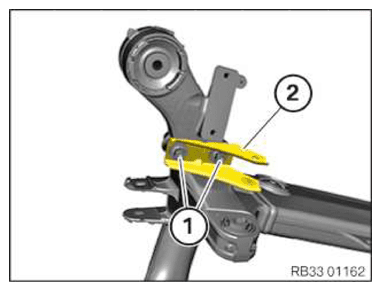

Check the thread for the screws (1) in the rear axle support; if necessary, repair them.
Position the bearing journal (2) on the rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1) .
Parts: Screws
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

Control link bearing bracket to rear axle support
M14 Replace screw.	tightening torque	165 Nm
