Installing the hood seal left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Installing the lateral hood seal

Position side hood seal (3).
Secure the rivet (2).
Install the adapter (1) for the cap.

Courtesy of BMW OF NORTH AMERICA, INC.

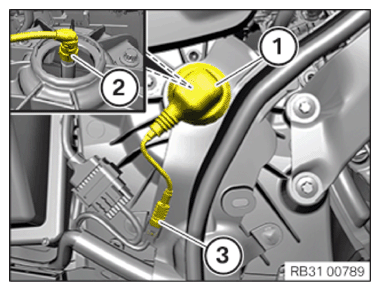

Connect connectors (3) and lock.
Connect plug (2).
NOTE: The connector (2) must noticeably snap into place.
Install cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
