Installing the cushion for the thigh support of the front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Connect connectors (3) and lock.
Insert the cushion (1) into the cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

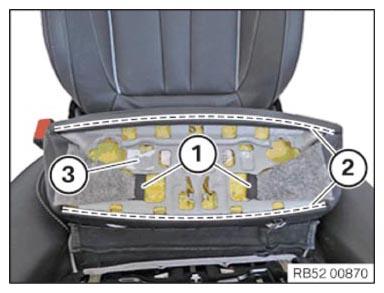

Insert the mounting plate (3).
Attach the edge stripping (2) to the mounting plate (3).
Attach the edge stripping (1).

Courtesy of BMW OF NORTH AMERICA, INC.

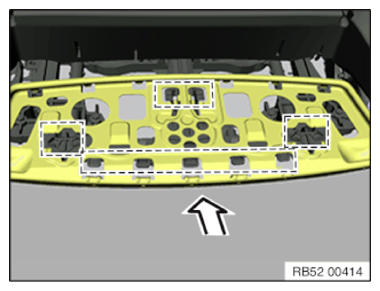

NOTE: For a better overview the removed condition is shown here.
Insert the support for the thigh support correctly into the guides and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
