Installing the anti-roll bar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Observance of the installation orientation of the anti-roll bar is mandatory because an incorrect assembly may occur.
Observance of the installation orientation of the anti-roll bar is mandatory because an incorrect assembly may occur.
- During assembly of the anti-roll bar, you must pay attention to the installation position!

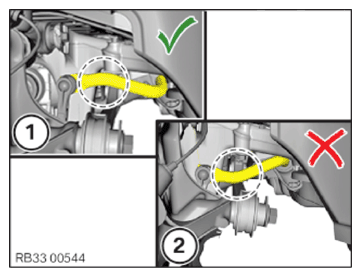

Graphic (1) shows the correct installation position.
Graphic (2) shows the incorrect installation position.

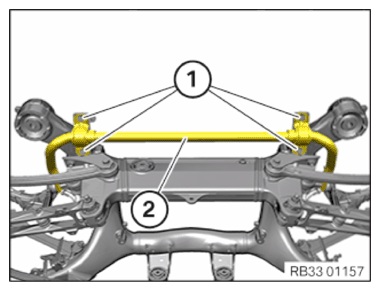

- Position the anti-roll bar (2) at the rear axle support.
- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Retainer, anti-roll bar to rear axle support | ||
| M10 Replace screws. |
tightening torque | 56 Nm |
