Install the radial shaft seal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Coat the housing of the sheet metal flange of the radial shaft seal with approved rear differential fluid.

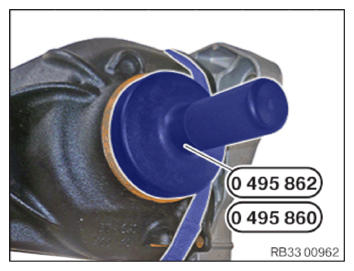

- Strike in the radial shaft seal with the matching special tool 0 495 860 (33 5 130) or 0 495 862 (33 5 140) up to the stop.
- Remove the special tool 0 495 860 (33 5 130) or 0 495 862 (33 5 140) .
