Install the outside door handle support with the door lock
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

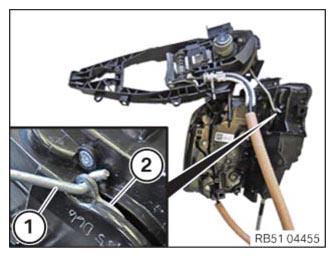

- Attach the linkage (1)
in the door lock (2)
.
- Guide in the door lock (3) together with the outer door handle support.
- Attach wiring harness.
- Connect the connector on the door lock (3) .
- Tighten down screws (2)
.TIGHTENING TORQUES SPECIFICATION
Door lock to door screw Tightening torque 8.8 Nm - Tighten down screw (4)
.TIGHTENING TORQUES SPECIFICATION
Door lock to door screw Tightening torque 8.8 Nm - Clip in locking rod (1) .
- Version with Automatic Soft Close system:
Fasten the drive for the soft-close automatic function (1) on the door.
Connect the connector to the drive for the soft-close automatic function (1) .
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION
Outside door handle support to door screw Tightening torque 2.6 Nm - Install the attachment hood (2) .
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Attachment bell to outside door handle support | ||
| screw | Tightening torque | 3 Nm |
