Install the cover of the right camber control arm
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Install the cover of the camber control arm

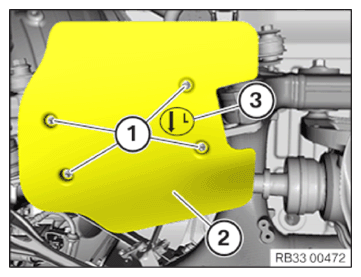

- Correctly position the cover of the camber link (2) on the camber link. Note the direction of installation while doing so.
The arrow (3) must point in the driving direction.
- Replace nuts (1).
Parts: Nuts
- Tighten the screws or the nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Cover to camber control arm | ||
| M6 Replace nuts. |
tightening torque | 6 Nm |
