Install the backrest cover with the cushion for the front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Position the backrest covering with cushion (2) over the backrest frame from the top.
If necessary, insert the associated wiring harness.
Secure the clips (1).
Check that the backrest cover with the cushion (2) is correctly positioned on the backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

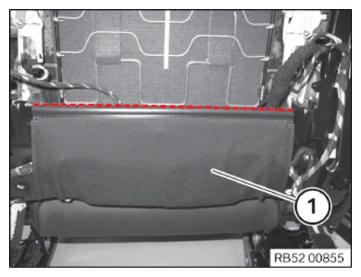

Insert the backrest cover (1) between the seat cushion and backrest towards the rear.
Insert the welt of the backrest cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the backrest cover (2) in this area (3).
Secure the clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in the cable into the seat mechanism.
Connect the connector (1) for the seat heating.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with rear-cabin monitor:

Fit the trim (2).

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Rear-compartment display holder trim to backrest structure
Screw	tightening torque	2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
