Install outer cover on front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

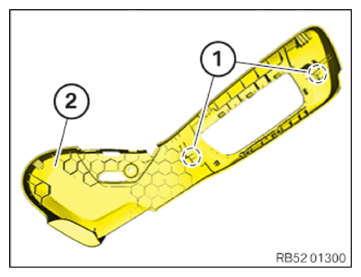

- Check the detents (1) for damage. If necessary, replace the cover (2).

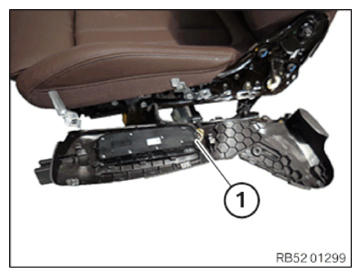

- Connect the connector (1) and clip into the cable bracket if applicable.

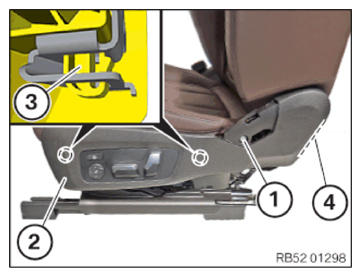

- Insert the cover panel (2) in the area (4) and position.
- Engage cover panel (2) at the detents (3).

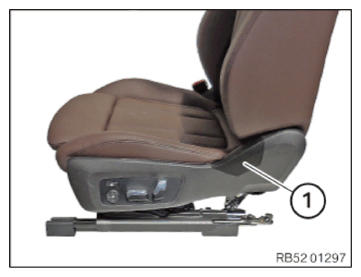

- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION
Seat trim to seat frame Sheet metal screw tightening torque 2.5 Nm TIGHTENING TORQUES SPECIFICATIONOuter seat trim to seat frame Screw Tightening torque 3.5 Nm - Clip in the cover (1).
