Install module carrier on the rear door (side window glass removed)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

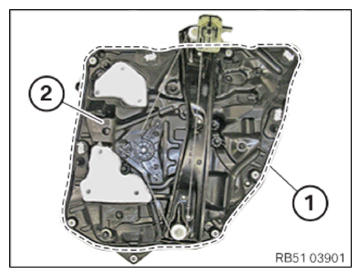

- Check seal (1)
of the module bracket (2)
for damage.
If the seal (1) is damaged, the module carrier (2) must be replaced.

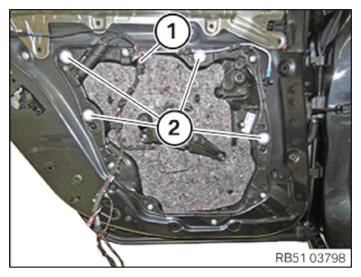

- Feed in module bracket completely with the power window and close the snap fasteners (2) .
- Attach the wiring harness (1)
and connect the connector.

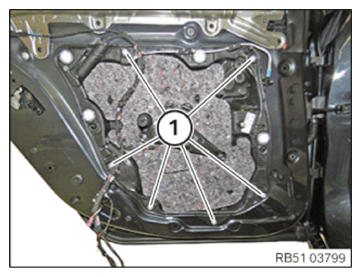

- Tighten the screws (1) .
TIGHTENING TORQUES SPECIFICATION
| Module bracket to door | ||
| screw | Tightening torque | 8 Nm |
