Fastening the right and left output shafts on the rear axle differential
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Secure the output shaft on the rear axle differential

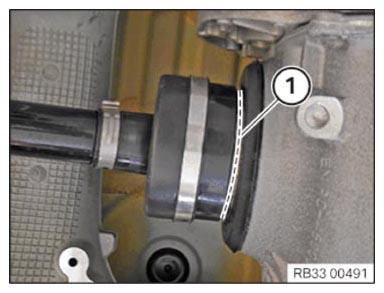

- Mount the special tool on the circumferential slot (1)
of the output shaft.

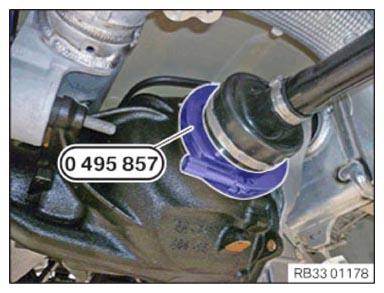

- Drive output shaft with special tool 0 495 857 (33 5 125) and a rubber mallet into rear axle final drive.
