Fasten air conditioning compressor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

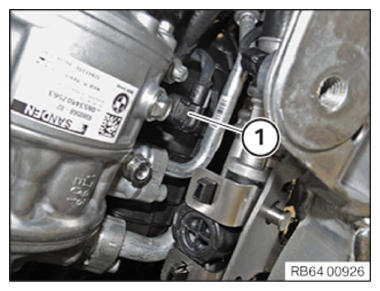

- Connect plug connection (1)
and lock.
- Position the refrigerant lines (2) on the air conditioning compressor (3) .
- Tighten down screws (1)
.TIGHTENING TORQUES SPECIFICATION
Refrigerant line on air conditioning compressor M8 tightening torque 19 Nm - Guide the bearing support (1) in from below and apply correctly at the crankcase (3) .
- Tighten screws (2)
on the bearing support (1)
.TIGHTENING TORQUES SPECIFICATION
Air conditioning compressor bearing bracket to crankcase Screw tightening torque 25 Nm - Correctly position the air conditioning compressor (2) .
- Tighten screws (1)
on the air conditioning compressor (2)
.TIGHTENING TORQUES SPECIFICATION
Air conditioning compressor to holder/engine M8 tightening torque 22 Nm - Tighten screw (1)
as shown.TIGHTENING TORQUES SPECIFICATION
Air conditioning compressor to holder/engine M8 tightening torque 22 Nm - Clip the transmission oil thermostat (1) downwards into the decoupling elements (2) on the front axle support.
