Draining the rear differential fluid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

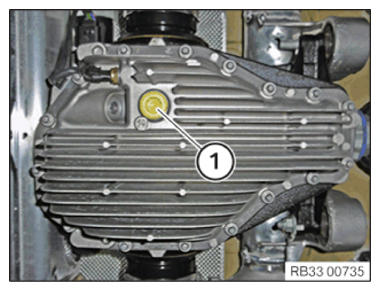

Release the oil filler plug (1).
Drain the rear differential fluid.

Courtesy of BMW OF NORTH AMERICA, INC.
When reusing the oil pan:
Replace the oil drain plug (1).

Parts: Plug
Tighten oil drain plug (1).

TIGHTENING TORQUES SPECIFICATION

Screw plug on final drive cover
M22 Replace screw plug with O-ring.	Tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
