Section 195 (General Orphan Data (2 Of 2)): Die-plate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

2407378

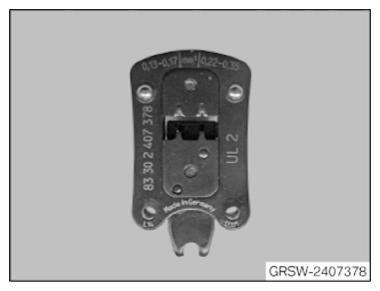

Die-plate Required tool Special tool

NOTE: Die for NanoMQS contacts. The plastic case for the crimping tool kit (0 496 833) is suggested as a storage location.

Storage Location:

Individual

Individual (Rolls-Royce)

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

0491118

Die-plate 121083 Special tool

NOTE: (set of dies) Cable 4 mm² /ignition wire

Storage Location:

K103

0495327

Die-plate 610210 Special tool

NOTE: (Die for LSK 8) (crimping insert kit for load current contact 8) in conjunction with crimping pliers 61 0 202 (from the special tools kit 61 0 200)

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location:

Individual

0495328

Die-plate 610220 Special tool

NOTE: (Die for SLK 2.8) (crimping insert kit for contact bushing 2.8) in conjunction with crimping pliers 61 0 202 (from the special tools kit 61 0 200)

Storage Location:

Individual

Courtesy of BMW OF NORTH AMERICA, INC.

0495477

Die-plate 610230 Special tool

NOTE: (Die for contact "DFK 40" and "MAK 8") For crimping the contacts when replacing the vehicle interior fuse box (up to manufacturing year 09/2005) and for further applications. To be used only in conjunction with crimping pliers 610202 from kit 610200.

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location:

Individual

0496464

Die-plate 610240 Required tool Special tool

NOTE: (Dies) Butt connector and LSK8, 4.0 to 6.0 mm²

Storage Location:

individual (Cable cabinet 1 and 2)

individual (Cabinet 550 and 350)
