Crimping tool

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of BMW OF NORTH AMERICA, INC.

0496847

Crimping tool 614329 Special tool

NOTE: Replaces special tool 61 4 322 from 03/2010. Available separately again from 04/2012.

Storage Location:

Individual

Courtesy of BMW OF NORTH AMERICA, INC.

0494161

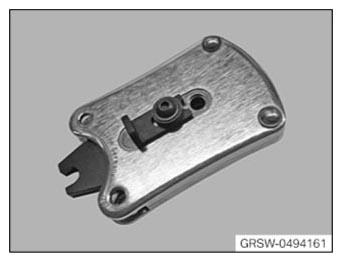

Crimping tool 614323 Special tool

NOTE: (Crimping head) For crimping optical fiber contacts

Storage Location:

Individual

Courtesy of BMW OF NORTH AMERICA, INC.

0496833

Crimping tool 614340 Required tool Special tool

NOTE: Universal crimping tool for contacts for a line cross-section of 0.35 - 2.5 mm² (without seal). From 03/2010, as a replacement for the existing SWZ 61 4 328. Delivery includes a handle in a case as a set. The die for NanoMQS contacts (2 407 378) is stored in this plastic case!

Storage Location:

Individual (Cable cabinet 1 and 2)

Individual (Cabinet 550 and 350)

Consisting of:

1 = 0496848

Case

NOTE: For storing 61 4 342 and 61 4 343

2 = 0496849

Handle

3 = 0496850

Crimping tool

NOTE: Universal crimping head for contacts up to a line cross-section of 0.35 - 2.5 mm² (replaces SWZ 61 4 328 from 03/2010)

0494158

Crimping tool 614320 Required tool Special tool

NOTE: (Crimping kit with pliers) For fiber optic cables (FOC) and cable repairs. Extended by universal crimping head 61 4 328. As from 03/2010 61 4 326 will only be available as a replacement.

Courtesy of BMW OF NORTH AMERICA, INC.

Storage Location:

Individual (Cable cabinet 1 and 2)

Individual (Cabinet 550 and 350)

Consisting of:

3 = 0494161

Crimping tool

NOTE: (Crimping head) For crimping optical fiber contacts

1 = 0494159

Handle

NOTE: Basic handle for crimping heads

2 = 0494160

Crimping tool

NOTE: (Crimping head) For strip off insulation and cutting optical fiber to length Replaced as from 03/2010 by 61 4 329 (0 496 847) .

4 = 0494162

Crimping tool

NOTE: (Crimping head) For crimping MQS contacts

6 = 0494164

Supplement

NOTE: (Replacement blade) For face-cutting optical fibers. From 03/2006, no longer included in set 61 4 320 but individually available as a replacement set . Replacement blade only suitable for 61 4 322.

5 = 0494178

Crimping tool

NOTE: (crimping head) For crimping MPQ contacts

7 = 0494320

Supplement

NOTE: (Replacement blade) With tool for replacing the knife in the stripping unit. Must be ordered separately, not included in 61 4 320 scope of delivery! Discontinued as from 03/2010 .

2 = 0496847

Crimping tool

NOTE: Replaces special tools 61 4 322 from 03/2010. Available separately again from 04/2012.

8 = 0495555

Crimping tool

NOTE: (Universal crimping head) For crimping contacts (without seal) and cable cross-sections from 0.35 - 2.5 mm . From 03/2010, 61 4 328 will no longer be supplied in kit 61 4 320. Order by way of separate special tool number 61 4 340
