Check the setting of the glass slide/tilt sunroof panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Check if the distance of the glass slide/tilt roof panel to the roof is the same at the front and rear.

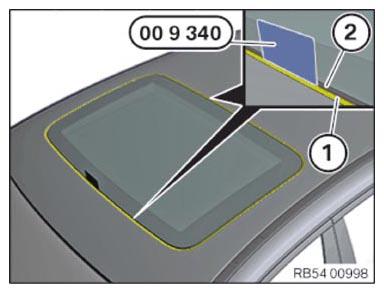

- Slide the special tool 0 493 687 (00 9 340)
between the gasket (1) and the glass slide/tilt sunroof panel (2).
The resistance when shifting the special tool must be the same at the front and rear.
- Make sure that the glass slide/tilt roof panel is flush with the roof outer skin at the front or is up to a maximum of 2 mm lower.
- Make sure that the glass slide/tilt roof panel is flush with the roof outer skin at the rear or is up to a maximum of 2 mm higher.

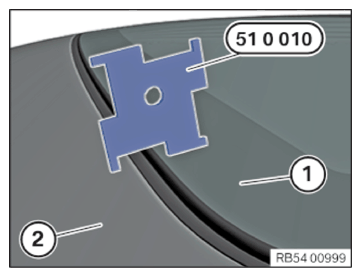

- Measure the position of the glass slide/tilt roof panel (1) to roof (2) with special tool 0 495 259 (51 0 010) .
