Bracing the rear axle carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

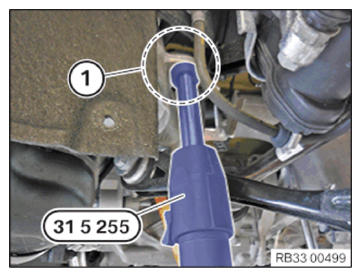

- Position the special tool 0 495 821 (31 5 255)
correctly on the front mounting point (1)
for the special tool.NOTE: Perform the steps on the right and left side.

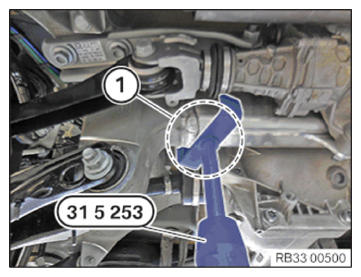

- Position the special tool 0 495 819 (31 5 253)
correctly on the rear mounting point (1)
for the special tool.

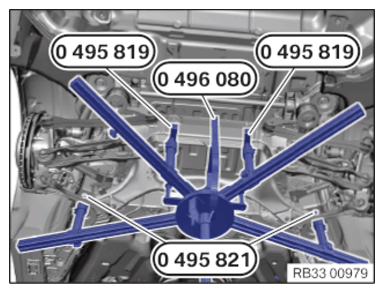

- Align special tools 0 495 821 (31 5 255) and 0 495 819 (31 5 253) to rear axle support.
The center of gravity of the rear axle must be centered over the universal jack!
- Support the rear axle support with the universal jack.
- Secure the rear axle support on special tool 0 496 080 (33 5 206) at the special tool 0 495 817 (31 5 251).
