Adjust the steering column position
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Difficult removal of the steering column in the lower and maximum extended position.
If removal of the steering column is part of these repair instructions, bring the steering column back into a centrally retracted position after removing the steering column shroud upper section.
Difficult removal of the steering column in the lower and maximum extended position.
If removal of the steering column is part of these repair instructions, bring the steering column back into a centrally retracted position after removing the steering column shroud upper section.

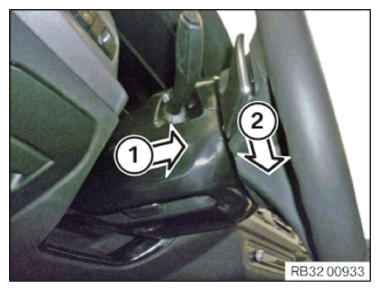

- Adjust the steering column in arrow direction (1) to the maximum length.
- Move the steering column to the lowest steering column position in the arrow direction (2).
