Add rear differential fluid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Contact with hazardous substances.
Health impairment.

Note and comply with the Safety Instructions on the containers and the instructions on the manufacturer's safety data sheet.
Conduct all work in appropriate personal protective equipment only.

CAUTION: Acid combustions may result from skin contact with oil or inhaling oil vapors.
Risk of acid burns from contact with oil!

Wear safety goggles and hand protection.
Ensure adequate ventilation.

NOTE: RISK OF DAMAGE
Damage to rear axle differential.
Failure to comply with the oil specifications can result in serious damage to the rear axle differential.

Only use approved oil in the rear axle differential.

NOTE: TECHNICAL INFORMATION
The oil level in the rear axle differential may not be checked. The correct oil level is lower than the oil filler opening.
After leaks at the rear axle differential, the residual oil must be drained from the rear axle differential and filled up with a measured quantity of the new rear differential fluid.

NOTE: TECHNICAL INFORMATION
Rear differential fluid must be shaken (mixed) prior to use so that the additive distributes evenly in the oil.
Filling capacity for the rear axle differential must be observed!
Filling up to the lower edge of the oil filler opening would overfill the rear axle differential.

Draining the rear differential fluid

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Release the oil filler plug (1) .
Drain the rear differential fluid.

Courtesy of BMW OF NORTH AMERICA, INC.

When reusing the oil pan:

Replace the oil drain plug (1) .

Parts: Plug

Tighten oil drain plug (1) .

TIGHTENING TORQUES SPECIFICATION

Screw plug on final drive cover
M22 Replace screw plug with O-ring.	Tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION

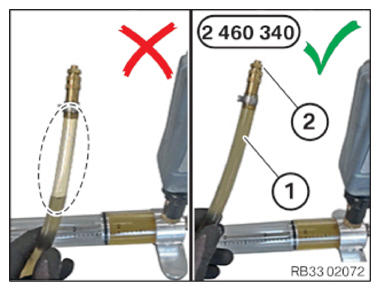

It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity.

Use special tool 2 460 340 to top up the oil.
To top up a defined (measured) oil quantity, first fill hose (1) with oil. Connect adapter (2) to do this.

Courtesy of BMW OF NORTH AMERICA, INC.

Supplement the rear differential fluid change/oil level with oil gun

NOTE: TECHNICAL INFORMATION
The training video schematically shows the method for changing the oil in the rear axle differential using the oil sprayer special tool.
The training video is not a replacement for the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.

Refer to:

multimedia:A supplement to the article is available.
Follow repair instructions!

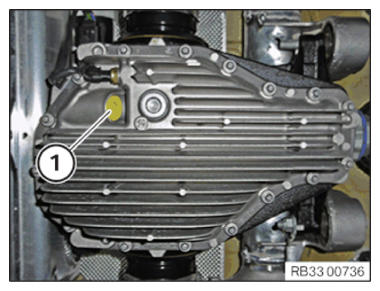

Release the oil filler plug (1) .
Shake (mix) the rear differential fluid before use.

Measure the required filling capacity and top up the rear differential fluid.

TECHNICAL DATA SPECIFICATION

Rear differential fluid Filling capacity (shake/mix rear axle differential oil before use)
	1 I

Courtesy of BMW OF NORTH AMERICA, INC.

Replace (1) screw plug.
Parts: Plug

Tighten the oil filler plug (1) .

TIGHTENING TORQUES SPECIFICATION

Screw plug on final drive cover
M22 Replace screw plug with O-ring.	Tightening torque	45 Nm
