Replacing the front axle transmission

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

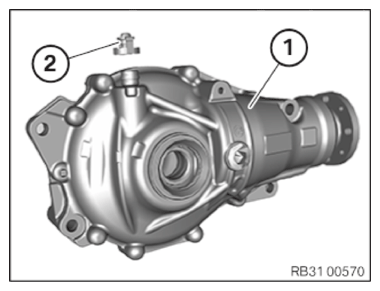

Replace the front axle transmission (1) .

Parts: Front axle differential

Remove all protective caps from the front axle transmission (1) .
Remount the cap (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Replace O-ring (1) .

Parts: O-ring

Mount the O-ring (1) on the front axle transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
