NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
Refer to LOOSENING THE OUTPUT SHAFT FROM THE WHEEL BEARING .
Refer to REMOVING THE FRONT LOWERING WHEEL ARCH COVER .
Refer to REMOVING THE BRAKE VENTILATION DUCT .
Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to REMOVING THE EXTERNAL RADIATOR .

NOTE: RISK OF DAMAGE
Component damage caused by striking tools .
Brute force can result in component damage .

Only use those tools intended for the work.

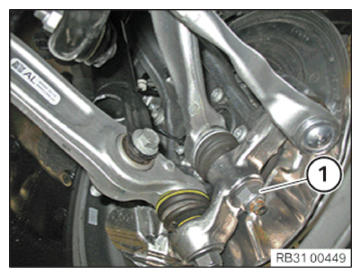

Unfasten nut (1).
Loosen the tension strut from the swivel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

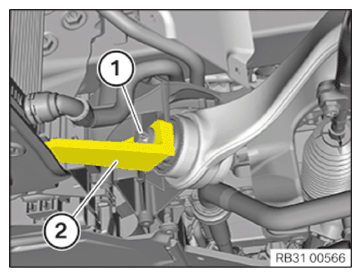

Loosen screw (1).
Remove the screw (1) with the crash lever (2).

Courtesy of BMW OF NORTH AMERICA, INC.

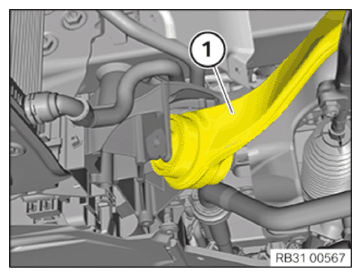

Remove tension strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
