Remove lower wishbone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Perform wheel alignment after installation.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE FRONT LEFT WHEEL .
Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .

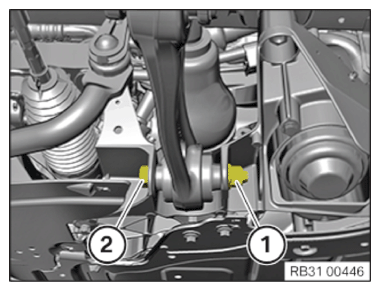

Unfasten nut (1).
Remove the screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut (1).
Remove the screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

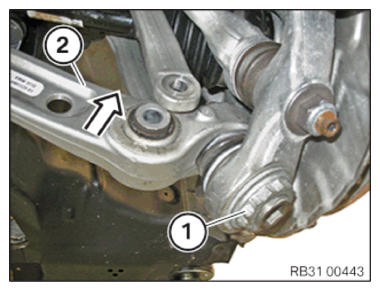

Unfasten nut (1).
Loosen wishbone (2) from the swivel bearing with the wheel guide joint upwards in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

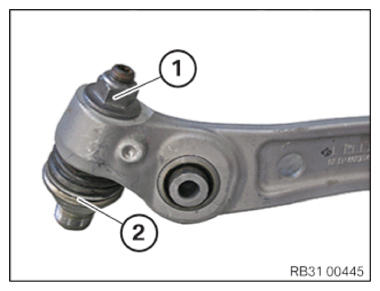

Unfasten nut (1).

NOTE: Counter support on the Torx socket of the wheel guide joint (2).

Remove the wheel guide joint (2) from the wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.
