Install top wishbone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

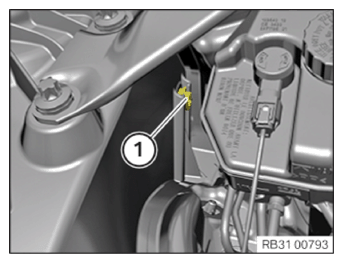

Replace the clip nut (1) of the rear screw connection of the upper wishbone on the body.
Parts: Clip nut

Courtesy of BMW OF NORTH AMERICA, INC.

Position the upper wishbone (3).
Replace screws (1) and (2).
Parts: Screws
Pull the suspension strut slightly out and install the screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut (1).
Parts: Nut
Hand-tighten the nut (1) of the front screw connection on the upper wishbone on the shock tower in the engine compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

Set the normal position of the upper wishbone (1).

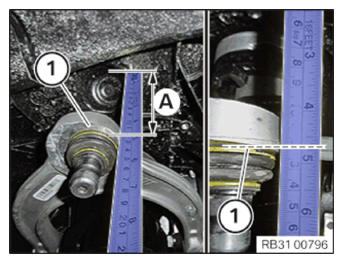

Vertically adjust the rear lower edge of the upper wishbone (1) for the body to dimension (A).
- Dimension (A) = 12 cm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

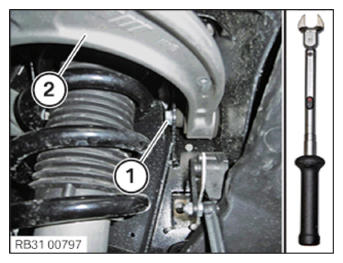

Tighten the screw (1) of the wishbone at the top (2).

TIGHTENING TORQUE SPECIFICATIONS

Upper wishbone to body
M10 Replace screw and nut.	tightening torque	54 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Upper wishbone to body
M10 Replace screw and nut.	tightening torque	54 Nm

Position the wishbone pin (4) at the top in the hole of the swivel bearing (3).
Replace the screw (2) and the nut (1).
Parts: Screw, nut
Install the bolt (2).
Tighten the screw connection via the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Upper wishbone to swivel bearing
M10 Replace screw and nut. Tightening via nut.	Tightening torque	56 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position jointed rod (2) on upper wishbone.
Tighten nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Jointed rod ride height sensor on wishbone
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Lower the universal jack and put it away.
Remove special tool 2 358 630 .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ATTACHING THE FRONT SPRING STRUT .
Refer to INSTALLING THE LATERAL HOOD SEAL .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to ATTACHING THE FRONT LEFT WHEEL .
