Lower front subframe

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Failure to comply with the specification. Component damage .

All specifications must be observed and complied with.

When lowering, ensure there is sufficient distance between the steering gear (1) and the output shaft (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

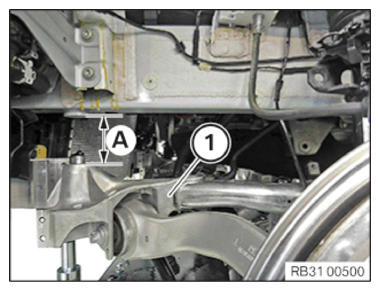

Lower the front axle support (1) by dimension (A) .

Dimensions (A) = maximum 10 cm

Courtesy of BMW OF NORTH AMERICA, INC.
