Replace the front axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
Remove the left engine mount

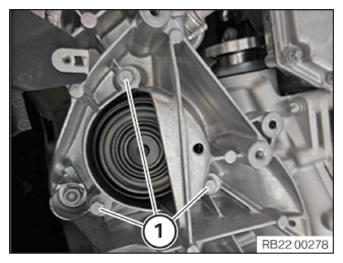

- Loosen screws (1) .
- Remove engine mount.
Removing the right engine mount
- Loosen screws (1) .
- Remove engine mount.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Loosen screws (2) .

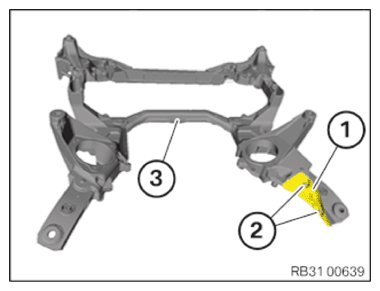

- Remove the heat shield (1) from the front subframe (3) .
Release all existing installed parts from the previous front subframe.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Loosen tensioning strap.

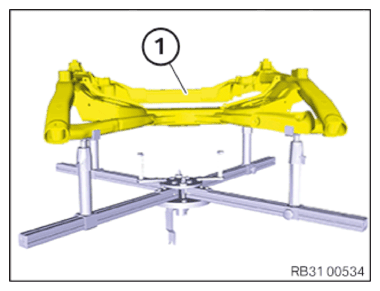

- Lift the front subframe (1) from the special tool.
- Replace front subframe (1)
.
Parts: front subframe
- Position the new front axle support (1) on the special tool.
- Secure the front subframe (1) with a luggage strap.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Position the heat shield (1) on the front subframe (3) .
- Tighten down screws (2) .
Fasten all existing installed parts to the new front subframe.
TIGHTENING TORQUE SPECIFICATIONS
| Standard screw connection M6 | ||
| M6 | Tightening torque | 8 Nm |
TIGHTENING TORQUE SPECIFICATIONS
| Standard screw connection M8 | ||
| M8 | Tightening torque | 19 Nm |
Installing the engine mount on the left
- Install engine mount.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Engine mount to front axle support | ||
| M8 | tightening torque | 19 Nm |
Installing the right engine mount
- Install engine mount.
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Engine mount to front axle support | ||
| M8 | tightening torque | 19 Nm |
