Removing the front subframe
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Lower the front axle support (1) by dimension (A) .
Dimension (A) = maximum 10 cm
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
- Release the screws (1) on the engine oil cooler (2) at left and right.
- Position engine oil cooler (1) behind the front axle support (2) .

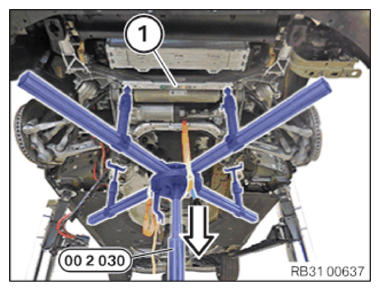

- Lower the front subframe (1) in the arrow direction using special tool 0 490 133 (00 2 030) and remove it.
- Position the engine oil cooler (2) .
- Screw in the screws (1) by a few turns.
