Front axle + steering: wheel/chassis alignment check (M5 2018-2022)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

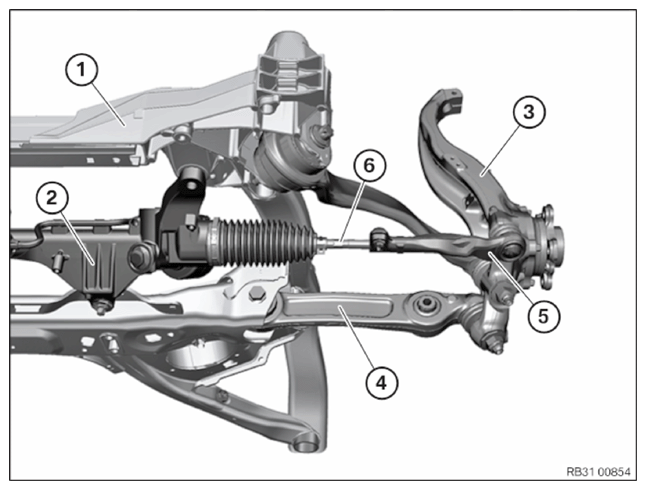

Illustration shows rear-wheel drive:
A wheel/chassis alignment check must be carried out after the following work:
- When releasing the following screw connections:
- Steering box to front axle support
- Lower wishbone to front axle carrier
- Tie rod end to tie rod
- When replacing the following parts:
- Front axle carrier
- Steering gear
- Swivel bearing
- Lower wishbone
- Tie rod end
- Tie rod
