2 249 117 Gauge
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
| Use | For fixing the camshaft in the TDC. (S63TU) |
COMPRISING DESCRIPTION

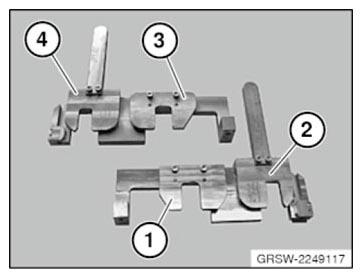

| No. | BMW order number | Replaced by | Description | In conjunction with |
|---|---|---|---|---|
| 1 | 2 249 137 | Gauge Gauge, intake camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only. |
||
| 2 | 2 249 140 | Gauge Gauge NW exhaust bank 1. Available only as complete set 83 30 2 249 117. |
||
| 3 | 2 249 144 | Gauge Gauge NW intake bank 2. Available only as complete set 83 30 2 249 117. |
||
| 4 | 2 249 159 | Gauge Gauge NW exhaust bank 2. Available only as complete set 83 30 2 249 117. |
