Supporting the front axle support
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preparing the special tool
NOTE:
TECHNICAL INFORMATION
In a profile rail pair, two profile rails are connected to one another by gearing.
In a profile rail pair, two profile rails are connected to one another by gearing.

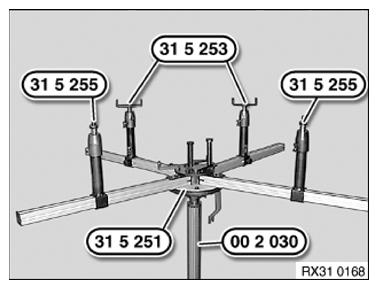

- Position the special tool fully on special tool 0 490 133 (00 2 030) with the help of a support person.
- Insert special tools 0 495 821 (31 5 255) in telescopic supports of a profile rail pair.
- Insert special tools 0 495 819 (31 5 253) in telescopic supports of other profile rail pair.
- Align special tools 0 495 819 (31 5 253) and 0 495 821 (31 5 255) to front axle support .

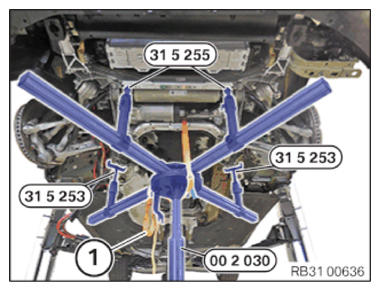

- Support the front subframe using special tool 0 490 133 (00 2 030) .
- Secure the front subframe with luggage strap (1) on the special tool.
