Securing wiring harness to cylinder bank 1

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

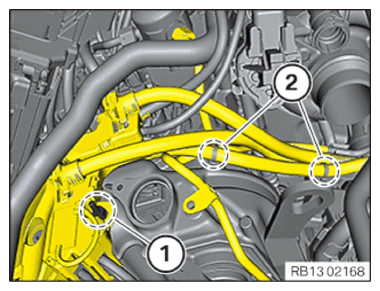

Position wiring harness.
Engage cable clip (2) .

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

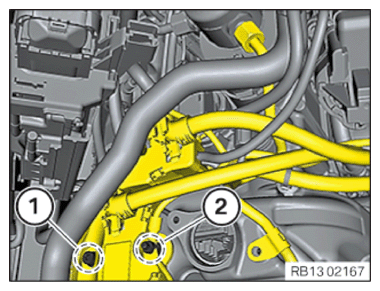

Tighten nut (2) .

TIGHTENING TORQUES SPECIFICATION

Ground cable to hold-down device
Nuts	Tightening torque	5.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Wiring harness to cylinder head cover
M6x16 screw	tightening torque	10 Nm
