Securing the tension strut on the left and right to the front subframe
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
NOTE:
Perform the steps on the right and left side.
- Replace the clip nut (1)
.
Parts: Clip nut

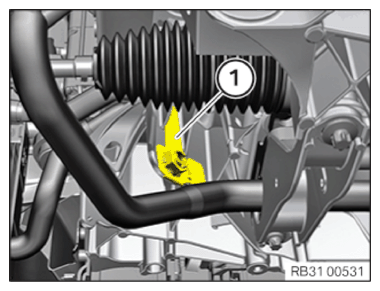

- Fasten the clip nut (1)
on the front subframe.NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION . - Version A:

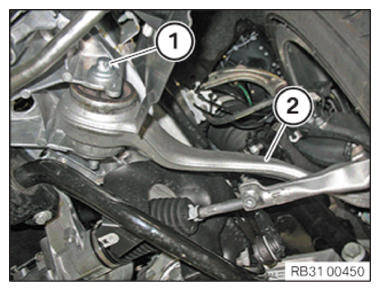

Position the tension strut (1) on the front subframe.
- Replace the screw (1)
with the crash lever (2)
.
Parts: Screw, crash lever

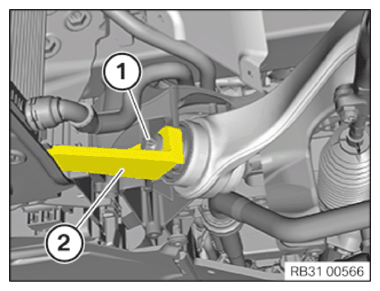

- Position the crash lever (2) with the screw (1) .
- Tighten the screw (1)
in NORMAL POSITION .TIGHTENING TORQUES SPECIFICATION
Tension strut to front axle support M14
Replace flat nuts and screw.
Tighten in normal position.Joining torque 85 Nm Angle of rotation 180° - Version B:

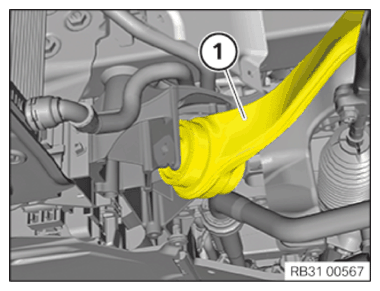

Position the tension strut (2) on the front subframe.
Replace the screw (1) .
Parts: Screws
Tighten the screw (1) in NORMAL POSITION .
TIGHTENING TORQUES SPECIFICATION
| Tension strut to front axle support | ||
| M14 Replace flat nuts and screw. Tighten in normal position. |
Joining torque | 85 Nm |
| Angle of rotation | 180° | |
