Securing the left and right anti-roll bar link on the anti-roll bar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the right and left side.

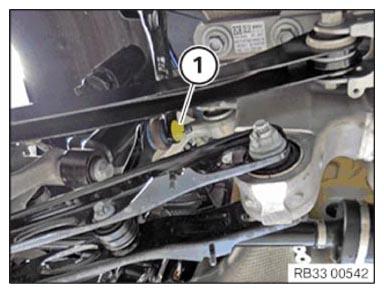

Securing anti-roll bar link on the antiroll bar
- Position anti-roll bar link on the anti-roll bar.
- Replace nut (1)
.
Parts: Nut
- Tighten nut (1) .
TIGHTENING TORQUES SPECIFICATION
| Anti-roll bar link to anti-roll bar | ||
| M12 Replace nut. |
tightening torque | 100 Nm |
