Removing upper oil sump section (engine removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

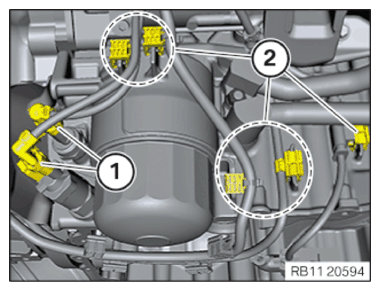

Unlock and disconnect plug connections (1) .
Disengage the cable bracket (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

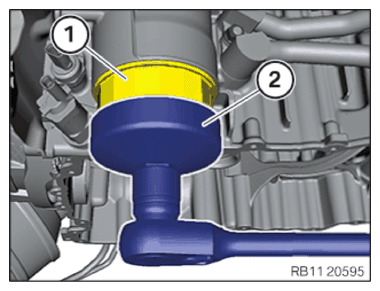

Position special tool 0 493 936 (11 9 240) (2) on the oil filter housing.
NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Release oil filter housing (1) .
Remove oil filter housing (1) with filter.

Courtesy of BMW OF NORTH AMERICA, INC.

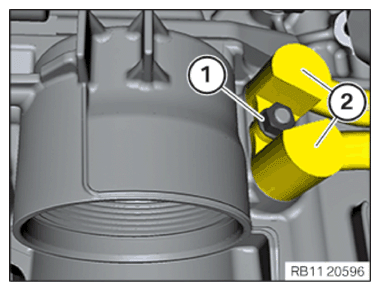

Loosen nut (1) .
NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Pull off engine oil pipes (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

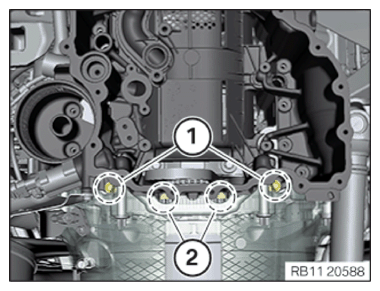

Loosen screws (1) .
Release screws (2) with the special tool 0 496 646 (11 4 410) .

Courtesy of BMW OF NORTH AMERICA, INC.

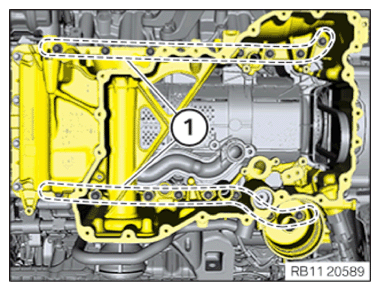

Loosen screws in areas (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

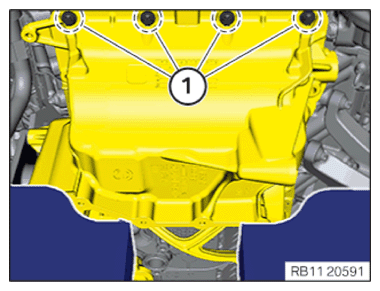

Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
