Removing the roller cam follower of the intake camshaft
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

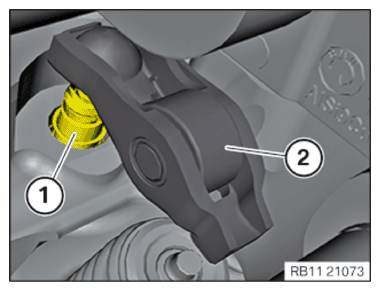

- Release and remove the roller cam follower (2) on the intake side from the hydraulic valve clearance compensating element.
- Place all roller cam followers in order in special tool 0 495 105 (11 4 480) .
- Remove all hydraulic valve clearance compensating elements (1) to the top.
- Place all hydraulic valve clearance compensating elements into the special tool 0 495 105 (11 4 480) along with the roller cam followers in order.
