Removing the left oil feed line partially
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

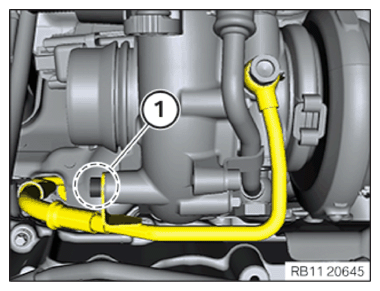

- Loosen screw (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Determining the screw type and selecting the appropriate socket wrench:
| Screw type |
Matching socket wrench |
| Hexagon screw (3) |
Commercial socket wrench (1) |
| Multi-tooth screw (4) |
Multi-tooth socket wrench (2) |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Loosen screw (1)
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
