Removing the left and right charge air cooler (engine removed)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

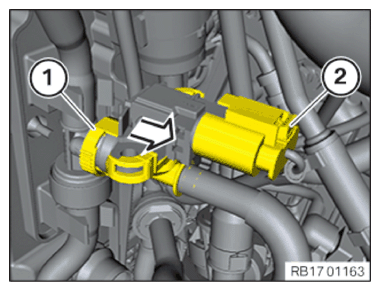

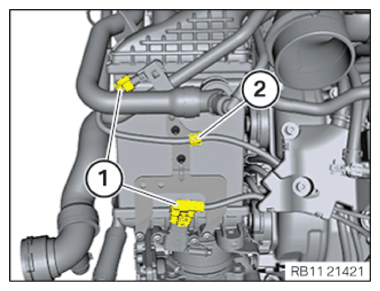

Unlock and disconnect plug connections (1) .
Open the cable clip (2) and place the cable aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the retaining clips (1) with a suitable screwdriver.
Detach the coolant lines (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

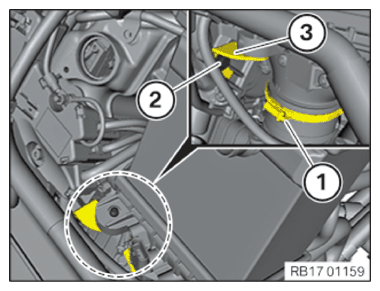

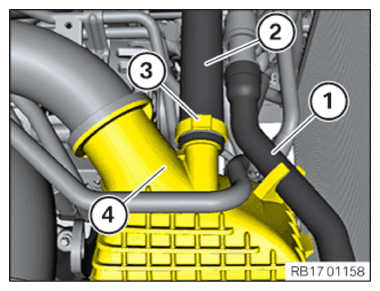

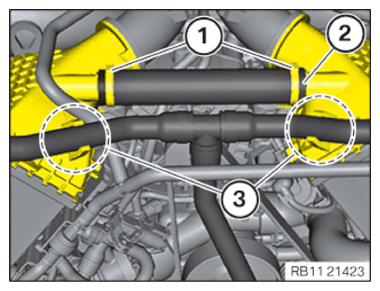

Thread the hose (3) out of the holder on the charge air cooler.
Release the hose clamps (1) .
Pull the hose (2) off the connecting piece of the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

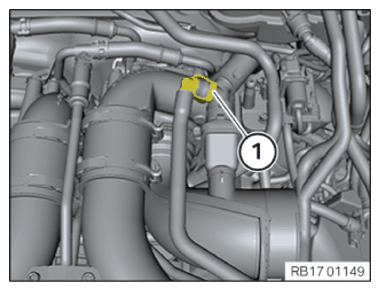

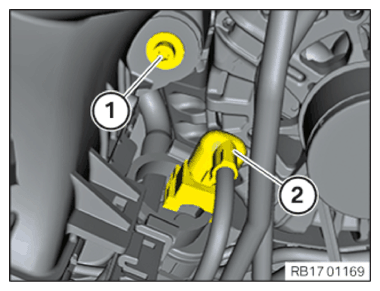

Loosen hose clamp (1) .
Loosen screw (2) .
Feed out the holder (3) downward.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the line (1) and disconnect.
Put the line to one side.
NOTE: There is risk of breakage.

Courtesy of BMW OF NORTH AMERICA, INC.

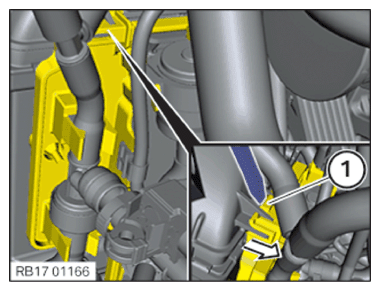

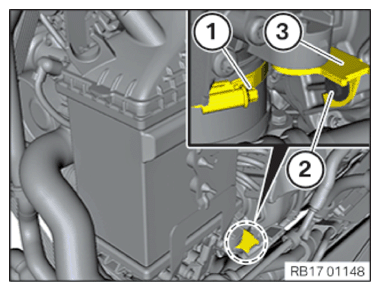

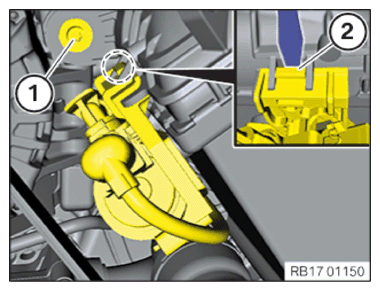

Loosen screw (1) .
Unlock the holder (2) in an upward direction using a suitable screwdriver.

Courtesy of BMW OF NORTH AMERICA, INC.

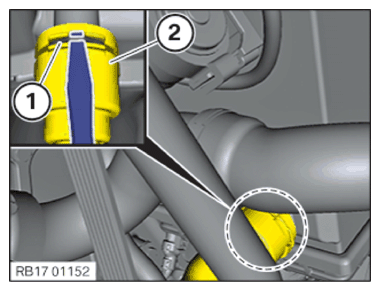

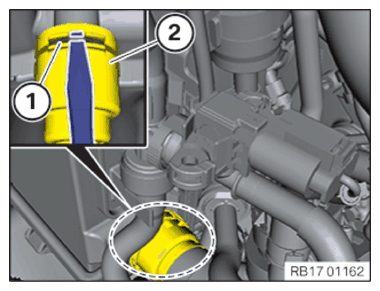

Unlock the retaining clip (1) on the hose (2) with a suitable screwdriver.
Detach hose (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

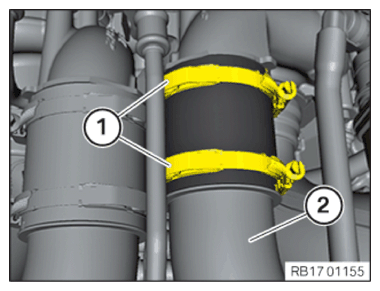

Release the hose clamps (1) .
Guide out the charge air cooler (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

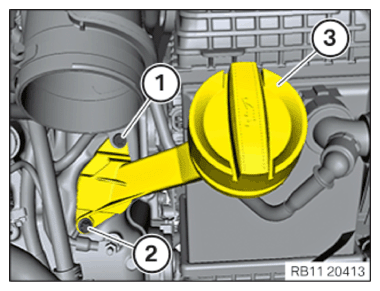

Removing oil filler neck

Release the screw (2) at the oil filler neck (3) .
Release the screw (1) at the oil filler neck (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

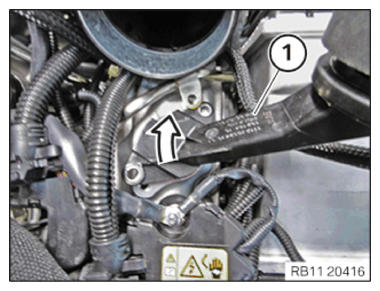

Turn the oil filler neck (1) by about 15° clockwise.
Remove the oil filler neck (1) .

G15264558

Courtesy of BMW OF NORTH AMERICA, INC.

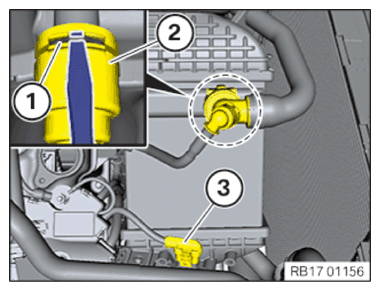

Unlock the retaining clips (1) with a suitable screwdriver.
Detach the coolant lines (2) and set aside.
Unlock plug connection (3) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

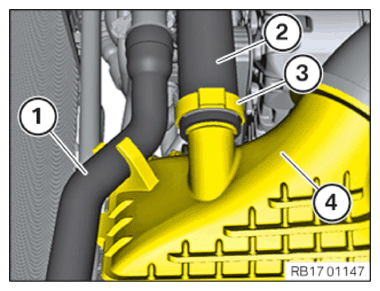

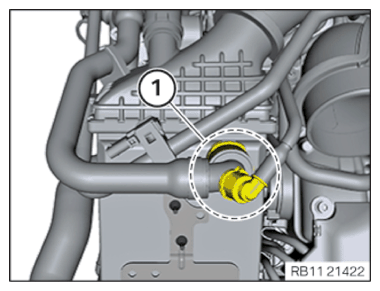

Thread the hose (1) out of the holder on the charge air cooler (4) .
Loosen hose clamp (3) .
Pull the hose (2) off the stud of the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Thread the hose (1) out of the holder on the charge air cooler (4) .
Loosen hose clamp (3) .
Pull the hose (2) off the stud of the charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen hose clamp (1) .
Loosen screw (2) .
Feed out the holder (3) downward.

Courtesy of BMW OF NORTH AMERICA, INC.

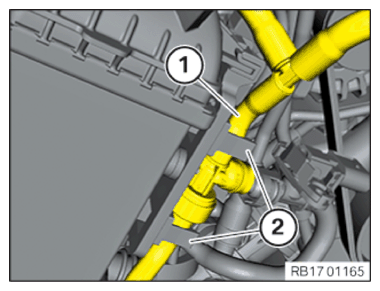

Unlock the line (1) and disconnect.
Put the line to one side.
NOTE: There is risk of breakage.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the line (1) and disconnect.
Put the line to one side.
NOTE: There is risk of breakage.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the retaining clip (1) with suitable screwdriver.
Remove the coolant line (2) and lay it to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the line (1) and disconnect.
Unlock plug connection (2) and disconnect.
Put the line to one side.
NOTE: There is risk of breakage.

Courtesy of BMW OF NORTH AMERICA, INC.

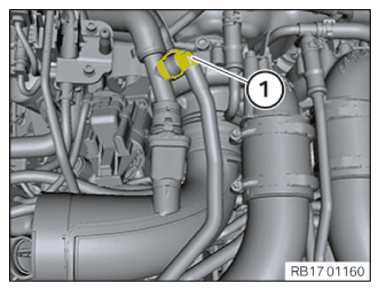

Unlock the holder with a suitable screwdriver at the lug (1) and remove it upward from the guide.

Courtesy of BMW OF NORTH AMERICA, INC.
Disengage line (1) from the holders (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1) .
Unlock plug connection (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

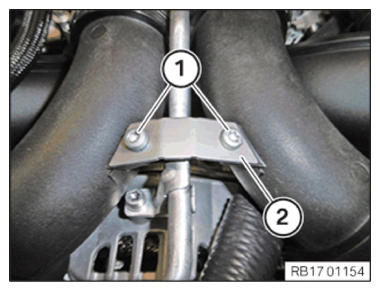

Loosen screws (1) .
Remove the connecting plate of the charge air cooler (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

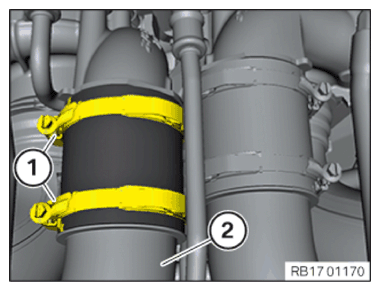

Loosen hose clamp (1) on charge air cooler (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

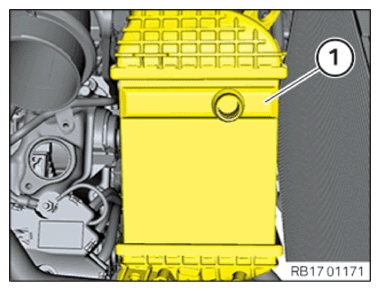

Guide out the charge air cooler (1) upwards.

G15264572
