Removing ignition coils of cylinders 1 and 2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

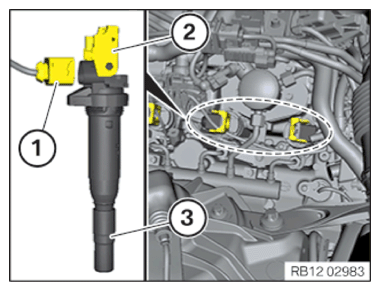

- Unlock the connector fastener (2)
of the ignition coil and disconnect the connector (1)
.
If necessary, the cable conduit on the heat shield must be pushed upwards slightly.
- Ensure that no cables are crushed or damaged.
- Repair damaged cables.
- Slowly pull the ignition coil (3)
up and take out without jerking it.
Pulling out the ignition coil (3) with jerks may cause the silicone hose to tear.

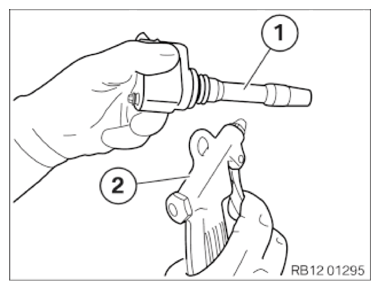

- After removing the ignition coils: Fuse off the silicone hose (1)
of the ignition coils with an air gun (2)
.
The ignition coils must be free of oil and fuel residue.
