Removing cylinder head of bank 2 from assembly jig

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy component.
Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons.

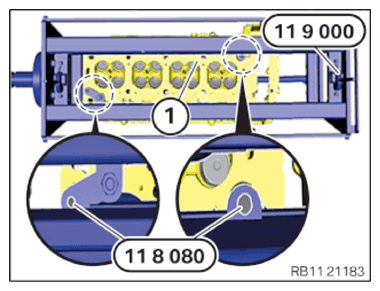

Release the screws 0 496 408 (11 8 080) at the special tool 0 494 362 (11 9 000) in the area of the attachment points.
Remove the cylinder head (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
