Removing both right VANOS adjusters
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Removing the slide rail of cylinder bank 1 (removal/installation/replacement of the VANOS adjuster)

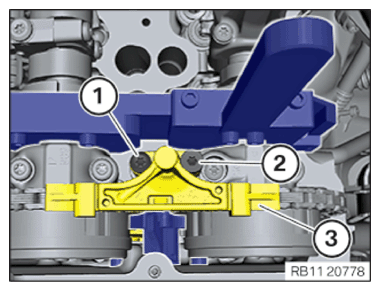

- Loosen screw (1) .
- Loosen screw (2) .
- Remove the slide rail (3) of the cylinder bank 1.

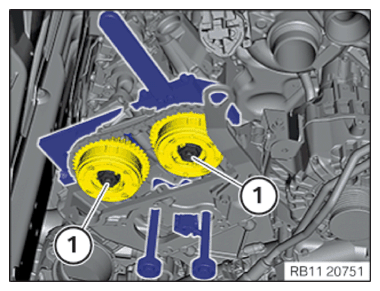

- Loosen the VANOS central valve (1) .
- Remove the VANOS central valves (1)
.

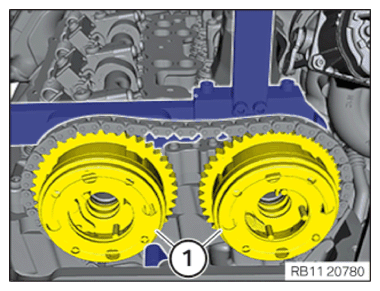

- Feed out and remove the VANOS adjusters (1) .
