Removing both left VANOS adjusters

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

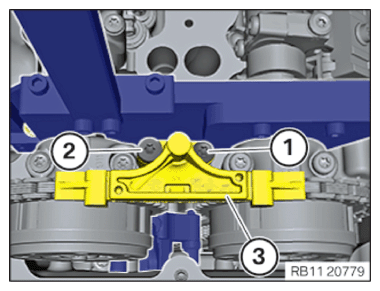

Remove the slide rail of cylinder bank 2 (remove/install/replace the VANOS adjusters)

Loosen screw (1) .
Loosen screw (2) .
Remove the slide rail of cylinder bank 2 (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

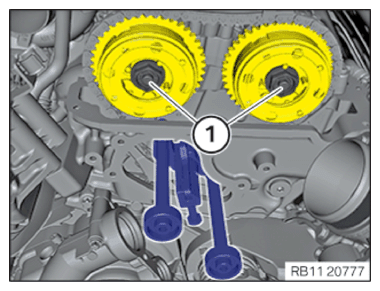

Loosen the VANOS central valve (1) .
Make sure the exhaust camshaft adjuster and the intake camshaft adjuster are not pulled off of the camshafts.
Remove the VANOS central valves (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

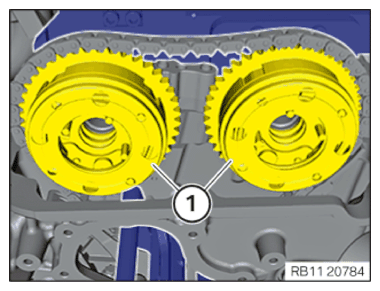

Feed out and remove the VANOS adjusters (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
