Remove the sliding block of cylinder bank 2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

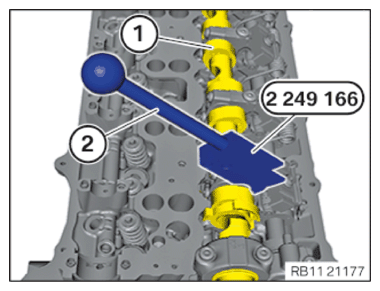

- Position the special tool 2 249 166
on the intake camshaft (1)
in the area of the sliding block (2)
to be disassembled.

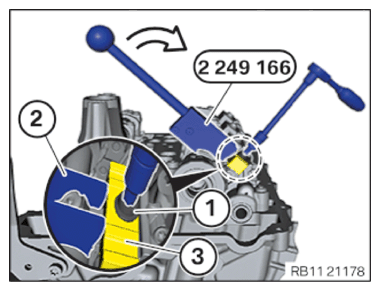

- Preload the sliding block (3) with the special tool 2 249 166 (2) in direction of arrow.
- Loosen screw (1) .
- Remove the gate (3) and place it arranged in order into 0 495 105 (11 4 480) .
- Repeat the step for all the gates.
