Remove the cover for the steering assembly on the right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

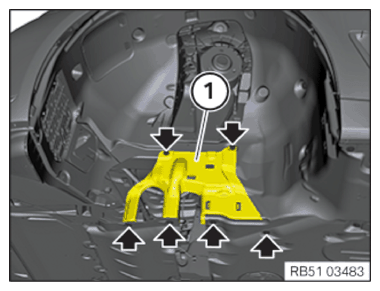

Remove the cover of the steering assembly

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Release all bolts (arrows).
Remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
