Releasing the right and left spring strut holder from the bottom wishbone

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

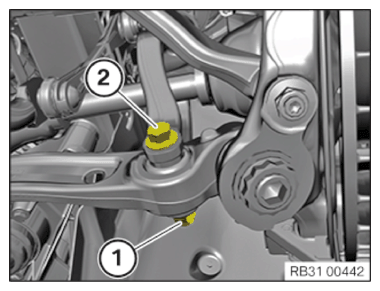

Release the spring strut holder from the bottom wishbone

Unfasten nut (1) .
Remove the screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
