Releasing the rear brake caliper
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

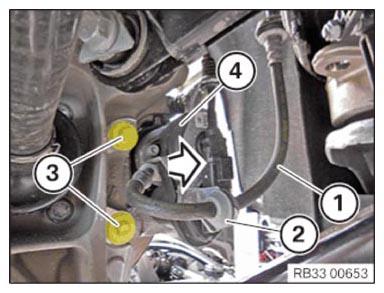

- Release the brake hose (1) from the holder (2).
- Loosen screws (3).
- Detach the brake caliper (4) in the direction of the arrow.
Do not hang the brake caliper from the brake hose.
- Tie up the brake caliper (1) with the special tool 2 413 317 .
