Release the left and right output shaft from the wheel bearing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

Loosen the output shaft from the wheel bearing

Press brake pedal.

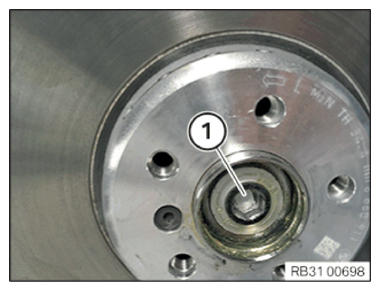

Loosen the collar screw (1) .

Do not leave the output shaft suspended at the joint, tie up the output shaft if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
