Prepare the mobile table lift
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Mobile table lift

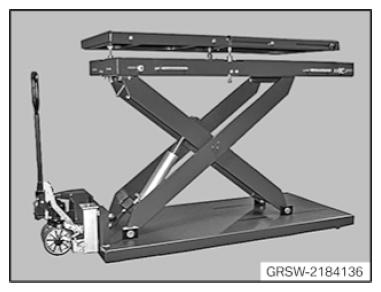

- Stage the mobile table lift 2 184 136
.

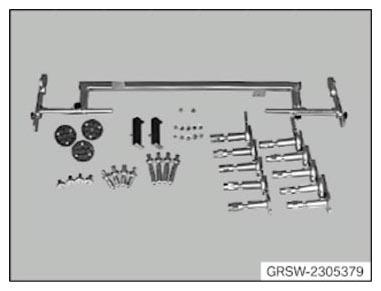

- Place the mounting element from the set of special tools 2 305 379
ready.

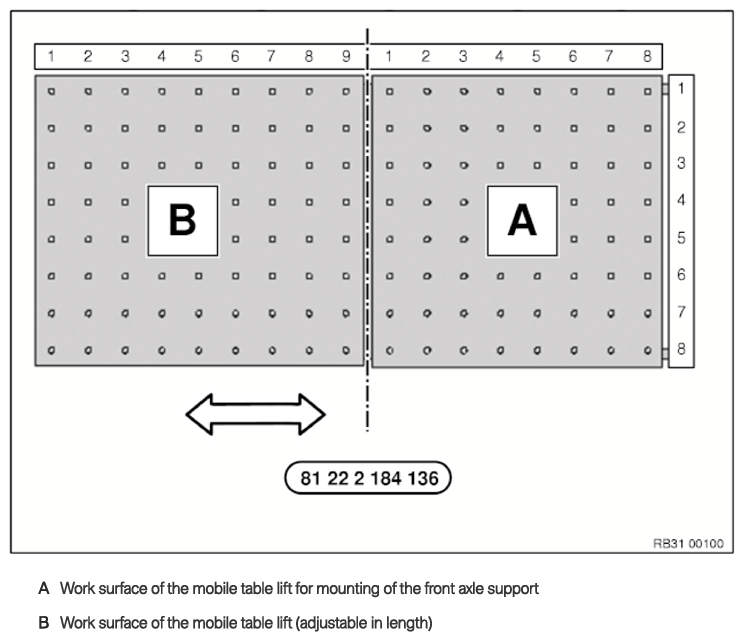

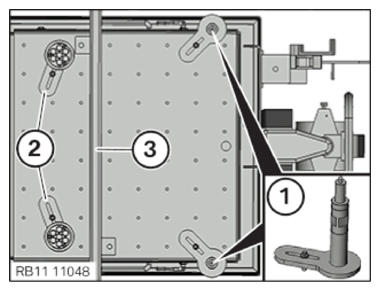

- Position the mounting elements (1) with the mounts (50) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 7/1 and 7/8 .
- Position the mounting elements (2) with the mounts (80) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 2/2 and 2/7 .
- Position the swivel bearing stand (3)
on the work surface (A)
of mobile lifting table at the coordinates 3/1
and 4/8
.

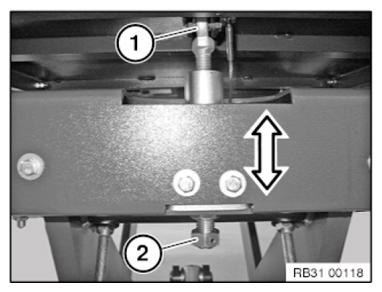

- Adjust the inclination of the lifting table (1) with the adjustment screw (2) until the bubble level of the lifting table (1) displays the correct position.
