Prepare special tool (8.5 mm diameter)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

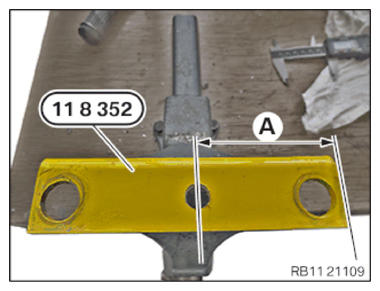

- Prepare the special tool 0 494 116 (11 8 352) from the set of special tools 0 493 997 (11 8 350) in a vice.
- Mark special tool 0 494 116 (11 8 352) in area A = 50 mm.
- Set a punch in the center of the marked area.
- Drill a hole with a diameter of 8.5 mm.
